| Specifications | Range |
|---|
| Fc Range | 200, 2000, 5000Fc |
| Lux Range | 2000, 20000, 50000Lux |
| Max. Resolution | 0.1Fc/1Lux |
| Basic Accuracy | ±4%FS |
| Cosine & Color Corrected | Yes |
| PC Interface | Yes |
| Dimensions/ Weight | 7x2.9x1.3" (178x74x33mm)/ 1.6lbs (726g) |

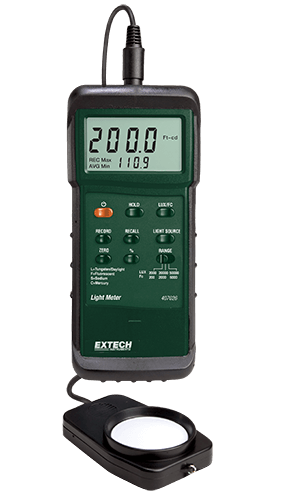

This Heavy Duty Light Meter has 4 lighting type settings for enhanced accuracy (Tungsten/Daylight, Fluorescent, Sodium, Mercury). Additional features include Data Hold, Min/Max/Average, Auto power off and a % reading of the differential from a reference point. Built-in RS-232 interface with optional Data Acquisition Software and Data logger. Complete with 9V battery, light sensor with 45″ (1.1m) cable, protective cover, and holster with stand.
- Simultaneous display of Foot Candles or Lux and lighting type
- Large 1.4" (1999 count) LCD display
- % displays differential from reference point
- "ZERO" Re-Calibration
- Utilizes precision photo diode and color correction filter
- Cosine and color corrected measurements
- ±4% accuracy is enhanced by selecting lighting type (Tungsten/Daylight, Fluorescent, Sodium, Mercury)
- Record/Recall MIN, MAX and AVG readings, Data Hold plus Auto shut off
- Built-in RS232 serial interface, optional software
